M12 IP67 Waterproof Outdoor Wire Connectors Quick Lock Molded Power Connector

M12 IP67 Waterproof Outdoor Wire Connectors Quick Lock Molded Power Connector

  • M12 IP67 Waterproof Outdoor Wire Connectors Quick Lock Molded Power Connector
M12 IP67 Waterproof Outdoor Wire Connectors Quick Lock Molded Power Connector
Productdetails:
Plaats van herkomst: Shenzen China
Merknaam: Jnicon
Certificering: UL , CQC , CE ,ROHS
Modelnummer: M12
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 100 (10 paren monsters)
Prijs: negotiable
Verpakking Details: 1. Plastic zak; 2. Karton; 3. Volgens de eisen van de klant
Levertijd: 3 ~ 5 dagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Levering vermogen: 10000 / dag
Contact
Gedetailleerde productomschrijving
Productnaam: M12 5-pins connector Huidige beoordeling: 10A + 2A
Spanningswaarde: 125V + 60V IP-niveau: IP67
Materiaal: PA66,UL94-V0 type: Montageveld Push Lock-connector
Markeren:

M12 waterproof wire connectors

,

quick lock power connector

,

IP67 outdoor LED connectors

5 Pole Waterproof Data Connector Quick - Lock High Durability Corrosion Resistance



Description of Waterproof Data Connector



1. 5 ( 2+3 )Pin connector , 2pin power supply , 3pin data supply .

2. Male and female electrical connector with cable .

3. Electrical wall washing waterproof data connector .

4. Optinal color for different environment .



The Reason for Choosing Our Product



  • 1. We can provide the M12 5pin waterproof data connectors with great quality and best price
  • Free sample can be provide for testing first , then decide if make an order
  •  We accept custom - made , whether it is connector , cable , carton or other special requirement .
  •  Approved by UL , CE , CQC and other units validation test .



Specification of M12 5Pin Waterproof Connector



Product name

M12 5Pin connector

Current

10A+2A

Voltage

125V+60V

Contact diameter X number

φ1.5 +φ1.0

Withstanding voltage

1000V

Protection level

IP67

Cable Specification

1.0+0.5mm2

Diameter range

MAXφ9.0mm

Operating temperature

-40℃ - 105℃

Connecting mode

Qick - locking

Insulating parts

High - performance engineering plastics

Material of copper needles

Copper alloy

Flame - resistant rating

UL94 - V0

Color

Blue black

Application

Wall washing lgiht / tube light

Warranty

5 Years

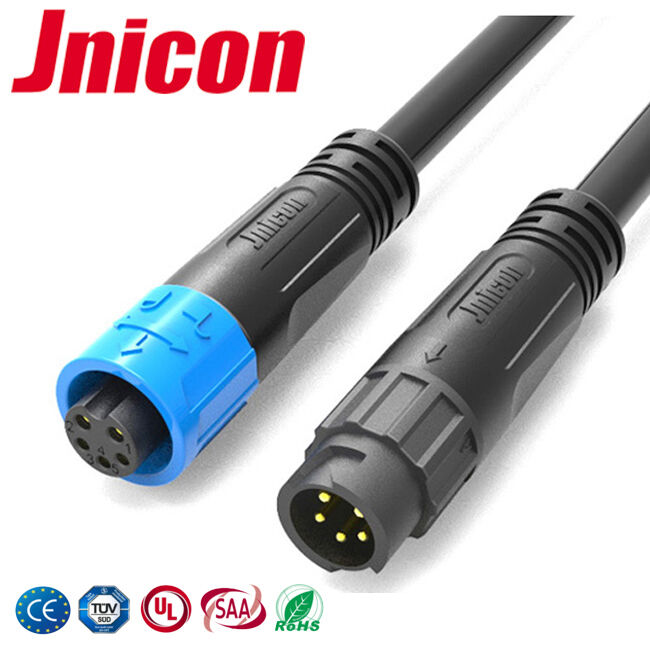

Picture of 5Pin Slef- Lock Cable Waterproof Connector



M12 IP67 Waterproof Outdoor Wire Connectors Quick Lock Molded Power Connector 0



M12 IP67 Waterproof Outdoor Wire Connectors Quick Lock Molded Power Connector 1
