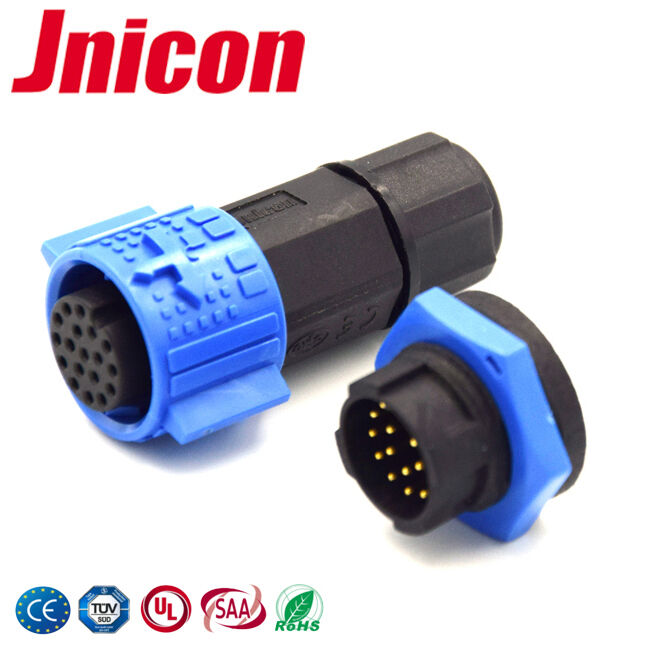

5A M19 Waterproof Connector Wire To Board CE 18 Pin Circular Connector

Productdetails:

Plaats van herkomst:	China
Merknaam:	Jnicon
Certificering:	UL,TUV,CE,ROHS,CQC
Modelnummer:	M19

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	100 (10 paren monsters)
Prijs:	negotiable
Verpakking Details:	1. Plastic zak; 2. Karton; 3. Volgens de eisen van de klant
Levertijd:	3-5 werkdagen
Levering vermogen:	10000 stks/dag

Contact

Gedetailleerde productomschrijving

Nominale stroom:

5 ampèren

Kabelbereik:

0,3-0,5 mm2

Sollicitatie:

Voor signaaldataverbinding

Garantie:

5 jaar

Markeren:

5A M19 waterproof circular connector

18 pin wire to board connector

CE certified waterproof data connector

18 Pin Waterproof Data Connector , M19 Multipin Waterproof Connector

Product Description:

1. Push locking type waterproof connector

2. IP67 protection level

3. Solder cable assembly to your applications

4. Multicolor available, such as Blue,yellow,black

5. Multicores are available, 12pin,15pin,16pin or 18pin

18 pin waterproof data connectors not only could be used for led application, also can be a good option to industrial equipment, control box,automatic signal transmission,stage lighting equipment etc.

Technical Data:

Core No. :	18pin
Connector color:	Black, blue, yellow
Waterproof level:	IP67
Cable specification:	0.3-0.5mm2
Cable diameter range:	4.5mm-11mm
Contact diameter*No.	Φ1.0-Φ2.4
Rated current (A):	5A
Operating voltage (AC.V.rms):	125V
Withstand voltage (AC.V)1min:	500V

Reliability:

Contact resistance:	<5mΩ
Insulation resistance:	>500MΩ
Durability:	≥3000 mating and unmating cycles
Temperature rating:	-40°C~105°C
Connecting mode:	Solder type/screw terminal
Flame-resistance:	UL94-V0

High quality material:

Sealed against dust and fluid (IP67)

Vibration resistance, impact resistance, stretching resistance

Dust cover available

High quality material to ensure and improve your applications performance, 18 pin waterproof connectors is a good choice to data transmission no matter for equipment or lights fixtures.
