| Plaats van herkomst: | China |
| Merknaam: | Jnicon |
| Certificering: | CE,TUV,UL,RoHS |
| Modelnummer: | M19 |
| Min. bestelaantal: | 100 (10 paren monsters) |
|---|---|
| Prijs: | negotiable |
| Verpakking Details: | Hoogwaardige exportkarton |
| Levertijd: | 3-6 werkdagen |
| Betalingscondities: | T/T, Paypal, L/C, Western Union |
| Levering vermogen: | 10000/days |
| Productnaam: | M19 20A waterdichte connector met hoge versterkers | Verbindingsmethode: | Duwvergrendeling, schroefvergrendeling |
|---|---|---|---|
| IP-niveau: | IP67 | Nominale spanning: | 500V max |
| Kabeldiameter: | maximaal 12 mm | Kabelspec: | 18AWG-12AWG |
| Markeren: | M19 waterproof plug socket 20A,IP67 rated power connector outdoor,waterproof plug socket LED equipment |
||

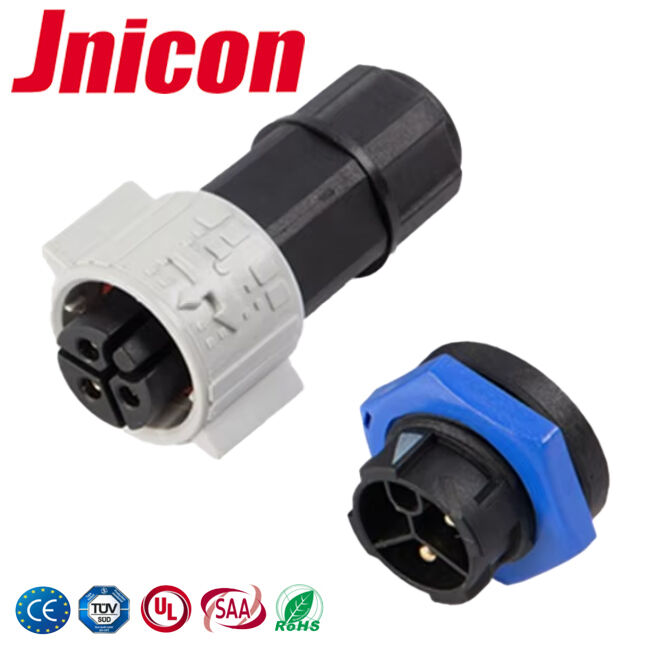

Plastic Outdoor Waterproof Plug Connector With Male Female , IP67 20A Power Plug
Product Features
1. 20Amps power connector
2. Multicore: 2,3,4,5,6,7,8,9 to 36 pins are optional
3. Connection method: soldering(welding),screw terminal
4. Assembly: cable to cable /wire to wire,panel mount,male and female without cable,T shape.
5. Certification: UL,TUV,RoHS,CQC,CE
M19 Connector Technical Specification
| Number of contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9-28 |
| Rated current/voltage | 20A | 20A | 15A | 15A | 10A | 10A | 10A | 5A |
| Rated voltage | 300V | 300V | 300V | 300V | 300V | 125V | 125V | 60V |
| Cable gauge | Max2.5mm²(12AWG) | |||||||
| Cable diameter | ∅12mm | |||||||
| Protection level | IP67 | |||||||
| Operating temperature | -45℃-105℃ | |||||||
| Connecting mode | Self-lock Assembly type | |||||||
| Flammability | UL94-V0 | |||||||
| Certification | CE, TUV, UL, RoHs, CQC | |||||||
Product Application
1. Great suitable for Outdoor LED light, LED equipment, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.
2.Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
3.With environmental protection material:high performance engineer plastic is good for environmental protection.
![]()
